Core System
SoC: Amlogic AML8726-MX
CPU: ARM Dual Cortex-A9 1.5GHz
GPU: Mali-400 MP
DRAM: DDR3 1GB
Flash: Nand Flash 4GB
Android OS: Android4.2
Features
Category: Dual core, Android Hybrid Box, OTT Box, Android media player
Digital TV: Fully compliant with HD DVB-S2, 7 days EPG, USB PVR, Time shift, Program playback, Timing playing
Network Streaming: HTML5, RTSP, HLS, Smooth streaming
Remote manager: Support TR069 protocols
DRM: Play ready
Multi-screen interactive: DLNA, Airplay, TVCast, Miracast
Air Remote: Can using the android and iOS mobile phone to control
System Upgrading: Upgrading via USB disk or SD card, internet
External Storage: USB storage, SD card max to 32GB (FAT32/NTFS)
Local Media Playback: Video/Audio/Picture
Games: Android 2D/3D games
Rich Android application: Facebook, YouTube, Skype, etc
Video
Decoder: MPEG-1/2/4 ASP, DivX 3/4/5, XviD, H.264(1920x1080p @30 fps), SVC, MVC,VC-1, WMV, H.263, AVS, RMVB, RealVideo, WebM,VP6, VP8 up to 1080P
Format: mkv, ts, m2ts, tp, mov, mp4, rm, rmvb, wmv, avi, mpg, mpeg, dat, vob, flv, asf
Resolution: 720P, 1080I, 1080P, 4:3 and 16:9 video ratio
Audio
Decoder: MPEG 1/2/2.5, Audio Layer 1/2/3, WMA Version 4, 4.1, 7, 8, 9, WMA Pro, PCM, Vorbis, Flac, ALAC, APE, AAC-LC, AAC-HE, Real Audio
Format: mp3, wma, wav, ogg, flac, mka, mp4, aac, ape , alac, mpeg, mp1, mp2, mpa
Subtitle
Format: SMI, SRT, SSA, ASS,SUB, SUB+IDX, ISO Navigation
Format: jpeg, bmp, png
Network
Ethernet Port: RJ45 Interface 10M/100M adaptive
Wi-Fi: Build in Wi-Fi 2.4GHz 802.11b/g/n
Tuner
Features: Fully compliant with HD DVB-S2 Standard
Frequency Range: 950 ~ 2150MHz
Input Level: -65 ~ -25dBm
Input impedance: 75Ω
Connectivity

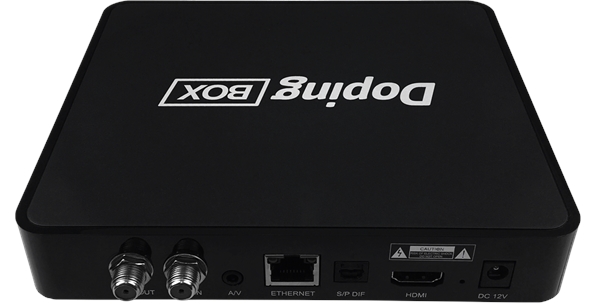

HDMI 1.4a. SD card slot. RJ45 for Ethernet. 3.5mm Composite A/V output. S/P DIF Optical output for Digital Audio. 2xUSB2.0. IR. Antenna input and RF-OUT F-connector. DC IN Power
Other
Input Voltage: DC IN 12V/1.5A
Power Consumption: 8W Max
Operation temperature: 0 ~ 40ºC
Product Dimensions: 166mm x 147mm x 28mm

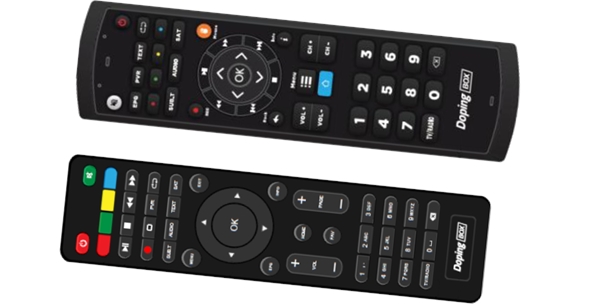

Proposed Accessory: Remote control and Battery, Air remote, USB cable, EU Power Adapter, 1 to 3 RCA
